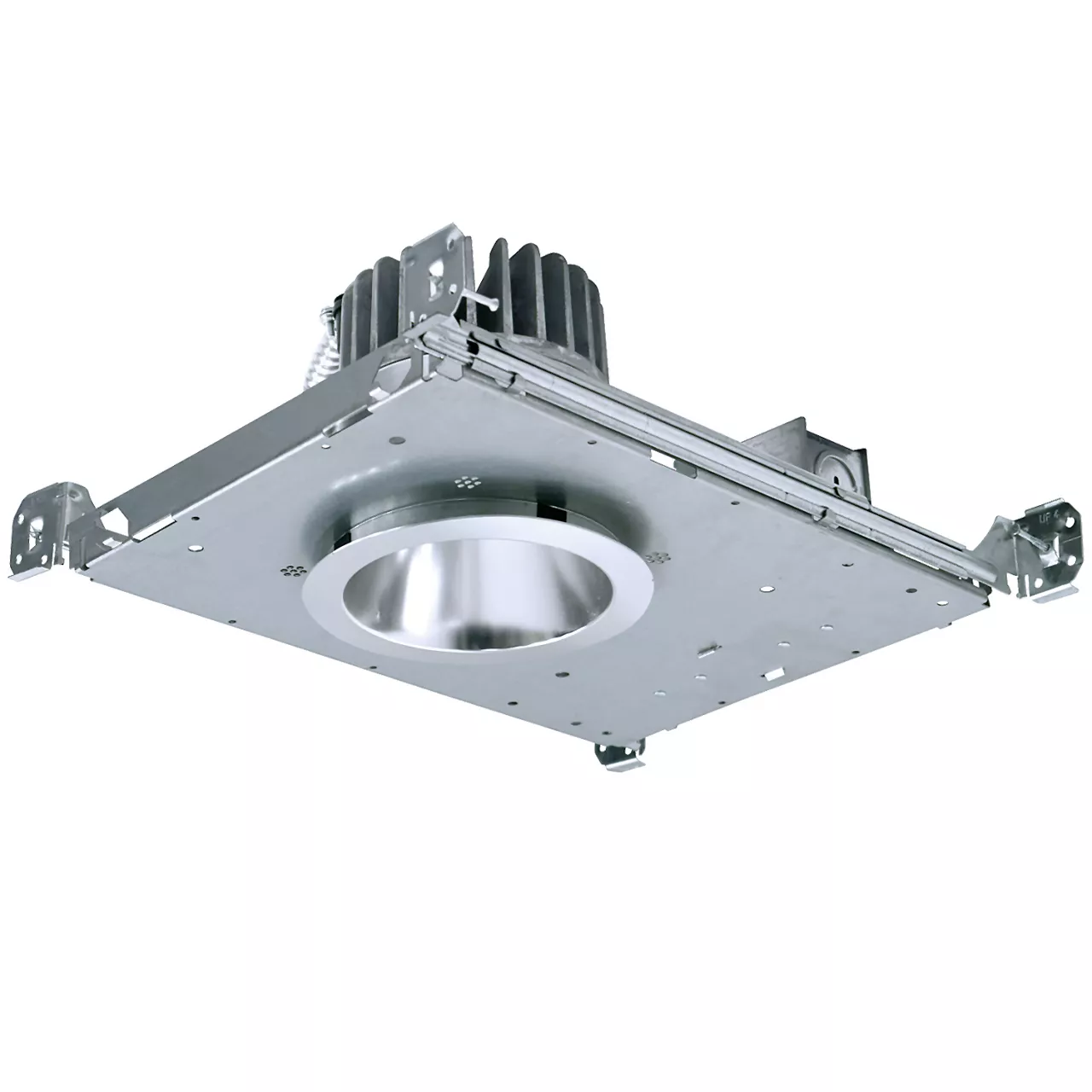

Universal New Construction Downlight
R4NC
- Specification Grade 4-inch round 16 gauge Galvanized Steel New Construction Housing with Die-Cast Aluminum Heat Sink
- Requires minimum 3-inch clearance around Housing from insulation material; thermal protection provided in case of improper insulation use
- Quick-connect Light Engine; Drivers are fully accessible from below the ceiling and can be easily removed
- Approved for Through Circuit Wiring, output over-voltage, over-current and short circuit protection
- Select from six (6) wattage/lumen packages: 12W/1100Lm, 16W/1600Lm, 21W/2200Lm, 30W/3000Lm, 38W/3700Lm, and 45W/4100Lm
- Available in 2700K, 3000K, 3500K and 4000K color temperatures; CRI of 80 min., 83 typical; high CRI of 90+available
- Excellent fixture-to-fixture color consistency with a 3-step MacAdam Ellipse tolerance
- Flanged or Trimless Specification Grade Trims in several different styles and finishes
- Trimless options require use of a Mud Frame (MF4, ordered separately) and cannot be used on Remodel Style Housings (R4RM) or with RSA4L Slope Ceiling Adapters
- Available for non-dimming and dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet
Product Information
Updated
Updated
Updated
IES
Product Features
Product Category : 4-Inch Downlight
Product Type : Downlight
Product Shape : Round
Housing : New Construction
Environment : Damp Location
Compliance : ENERGY STAR® Certified,Certified to UL924 Standard for Emergency Lighting
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Color Rendering Index : 80-89,90-100
Wattage : 11W - 20W,21W - 30W,31W - 40W,41W - 50W
Lumen Output : 1001-1500,1501-2000,2001-3000,3001-4000,4001-5000
Voltage : 120V,277V,347V
Dimming Technology : Forward Phase,Reverse Phase,0-10V,Lutron,DALI
Trim Type : Self Flanged,Trimless,Dead Front
Aperture Size : 4-Inch
Emergency Battery Back-up : Remote Test Switch
Standards and Certifications
Buy American Act (BAA) Compliant : Yes
